WELDOR ENGINEERING PVT. LTD.

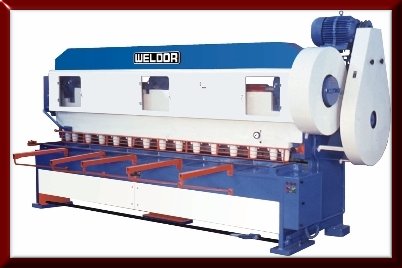

OVER CRANK SHEARING MACHINE

WELDOR Shearing Machines have been designed and developed through structural analysis technique for continuous production accuracy and repeatability.

1. Frame: Rigid steel frame of Weldor Shears are optimally designed to avoid weak sections and is of interlocked design. The ram is guided throughout its length by accurate machined guideways ensuring proper clearance and clean cut.

2. Clutch, Brake & Drive: Revolving Key Clutch lined with the Main Gear engages every time when foot paddle is pressed. Drive provided through V-Belt & all journals are fitted in Gun-Metal Bearings. Brake is adjustable and incorporated on end of Crank Shaft.

3. Hold - Down System: Hydraulic Hold down pads are actuated by cam operated pump. Hydraulic hold down pads hold the sheet securely to avoid slipping and bowing resulting in clean square cut. Hold down units are provided with oversize pads to avoid impressions on sheet metal on request.

4. Knives: Weldor Shears are provided with high quality single segment (HcHcr) Knives for longer tool life. Ease in assembling of knife reduces down - time, the knife blades are four edged.

5. Lubrication: All bearing parts and guide surfaces are lubricated through hand-operated lubrication system.

6. Mechanical Backgauge: this is a standard equipment provided on all Weldor Shears. Scale on the backgauge gives instantaneous reading of distance between shear and back gauge, thus avoiding errors and maintenance encountered in electronic equipment.

7. Finger guard: Fitted in front of hold-down for operator protection without obstructing viewing.

Standard Accessories: Gear & wheel guard, Hand operated back gauge, Manual lubrication system, stroke counter, T-slot front supporters, Front Scale Gauge, Hydraulic Hold down & instruction manual.

Optional Accessories: Automatic Lubrication system, Electricals consist of Electric Motor, Control panel, V-belts, ball roller or ball transfer, Foundation bolts, Extension Squaring arm.

Note: Electricals & Blades are not under Warranty.

Capacities Available:
